TBNation Outdoors Midwest

Heavy Duty Adjustable Graph Mount

Heavy Duty Adjustable Graph Mount

$250.00 USD



This bombproof adjustable graph mount was designed to fit 1, 2, or 3 of the larger size graphs in todays market and rough water conditions. This fish finder mount, you can install a combination of 15" graphs, 12" graphs, 10" graphs, or any mix of large graphs you wish with the corrrect configuration. Fits larger-sized Humminbird, Garmin, Lowrance, Raymarine, and more.  You can buy the whole kit with everything you see in the pictures, or just get the parts you want for your build in the selection box.  Includes assembly hardware.

This graph mount is black textured powder coated 1/4" aluiminum with the ultimate in  adjustability:

  • Legs can be mounted on the outside or inside of either the bow plate mount or over the pedal mount
  • Legs can be mounted with angle forward or rearward
  • Bow Plate mount or over the pedal mount can be rotated for optimal the optimal angle.
  • The grap gimbals can be adjusted left and right with plenty of slot width for ounting the gimbals
  • The slot rows are 1.25" and 1.5" between them to fit many manufacture gimbals

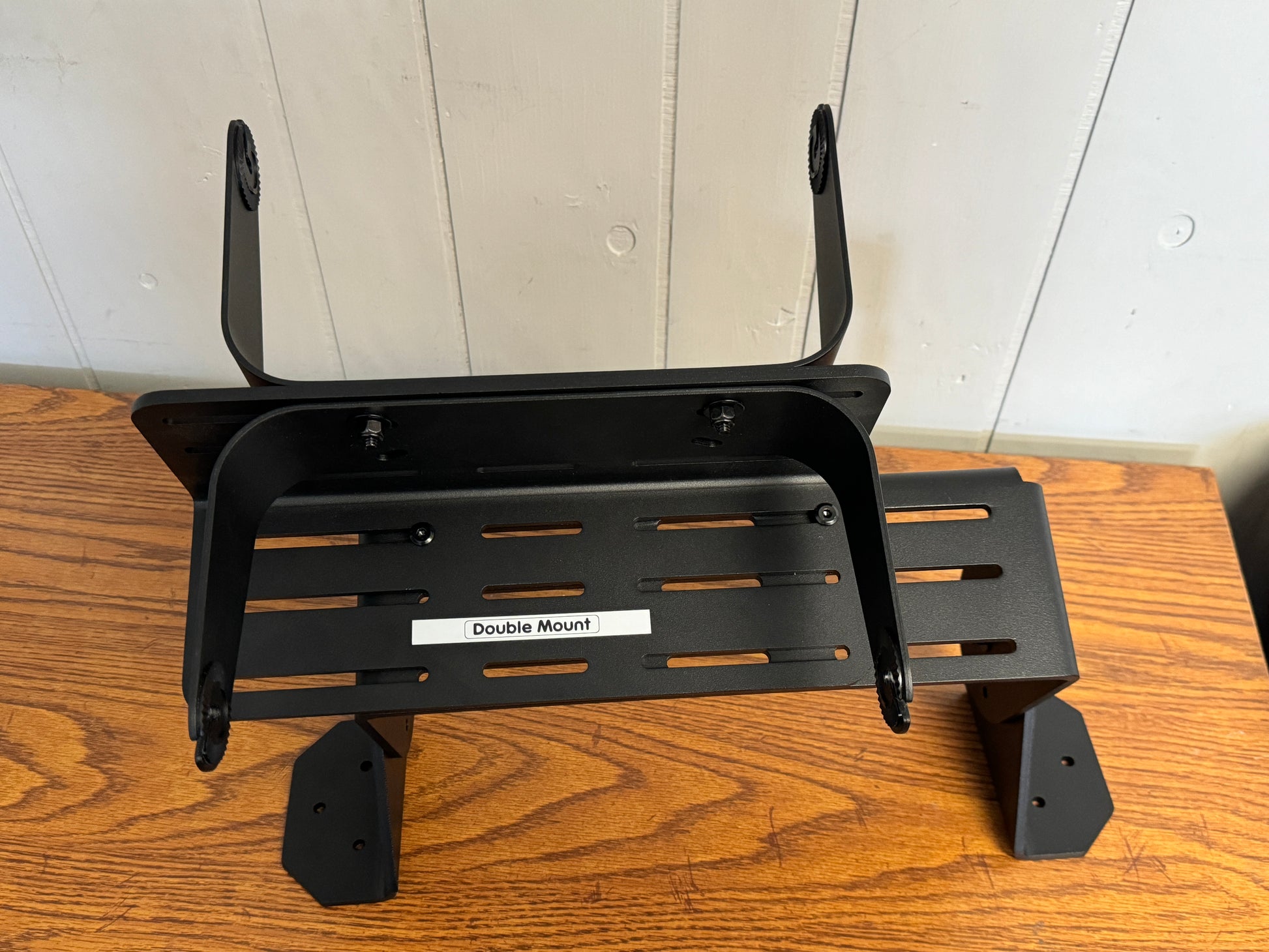

  • The double mount and triple mount can be adjusted left and right when attaching it to the bow plate or over the pedal mount.  This allows the mounting position to fit your graphs alongside the trolling motor and other bow equipment.

  Designed for over 36" of Combined Screen Sizing - for our Economy Dual Mount for under 20" of total screen size please click here

CLICK HERE FOR ASSEMBLY AND MOUNTING INSTRUCTIONS

6 complete configurations available:

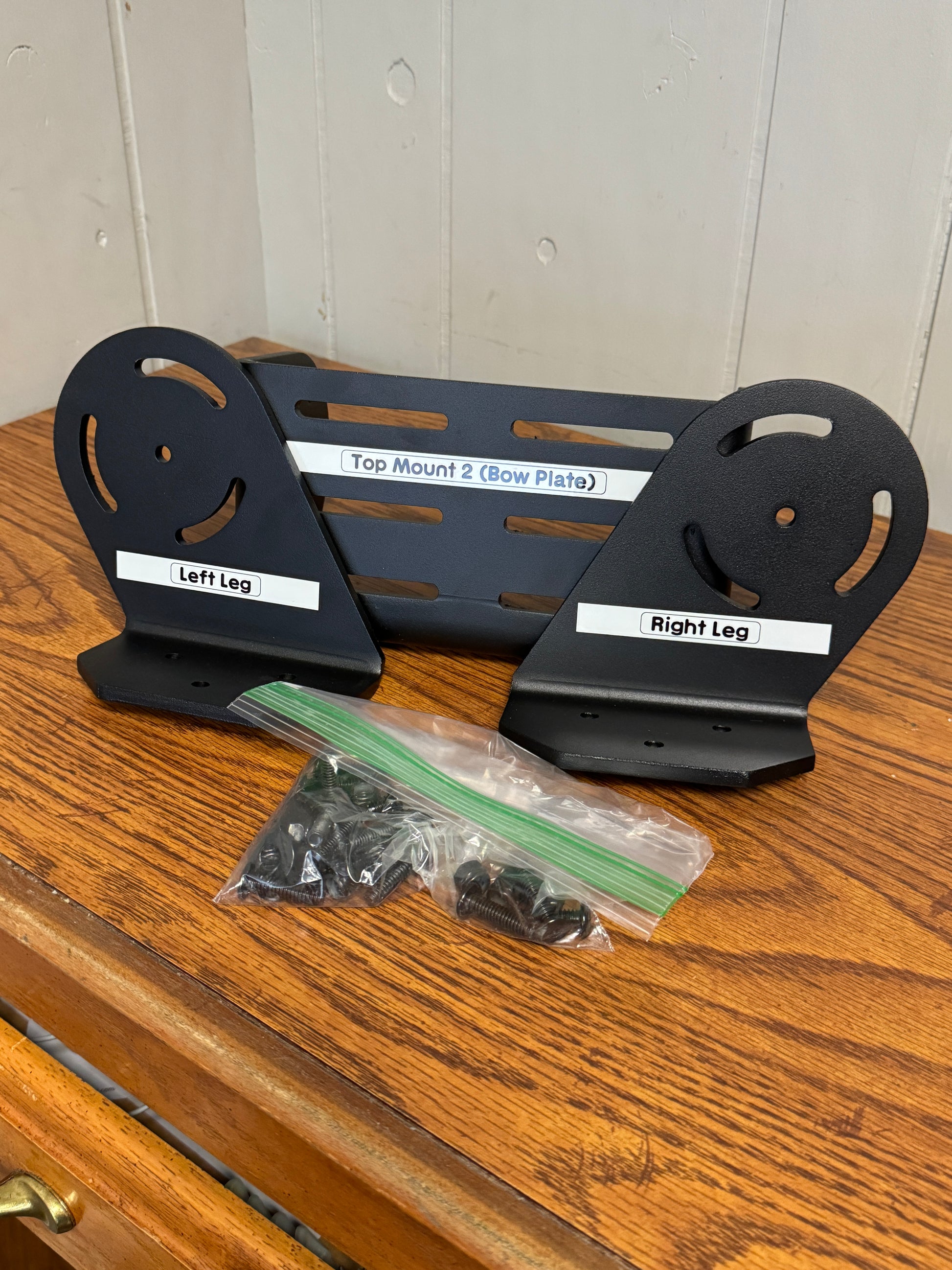

  • Bow Plate Single includes right leg, left leg, bow plate mount, assembly hardware

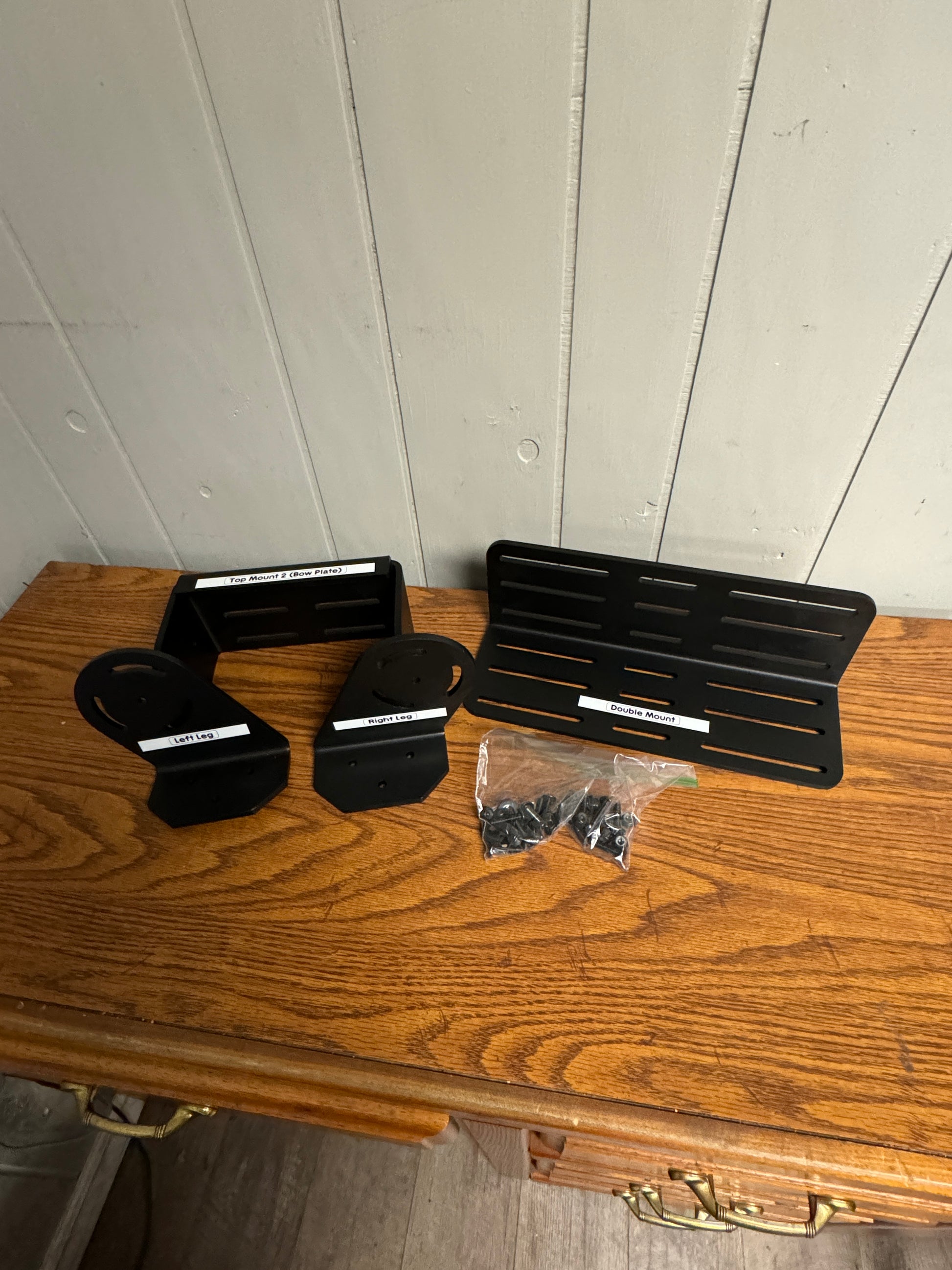

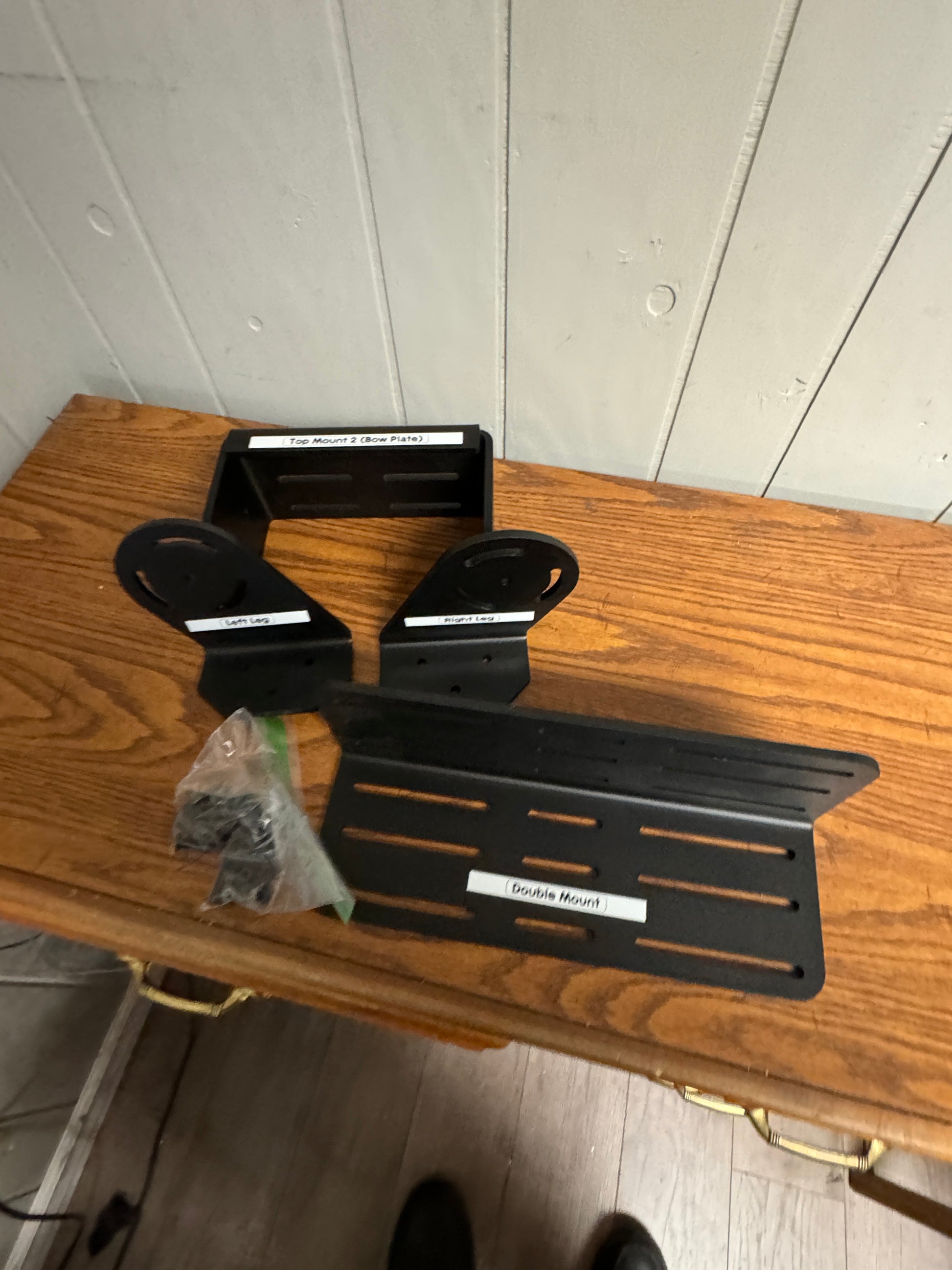

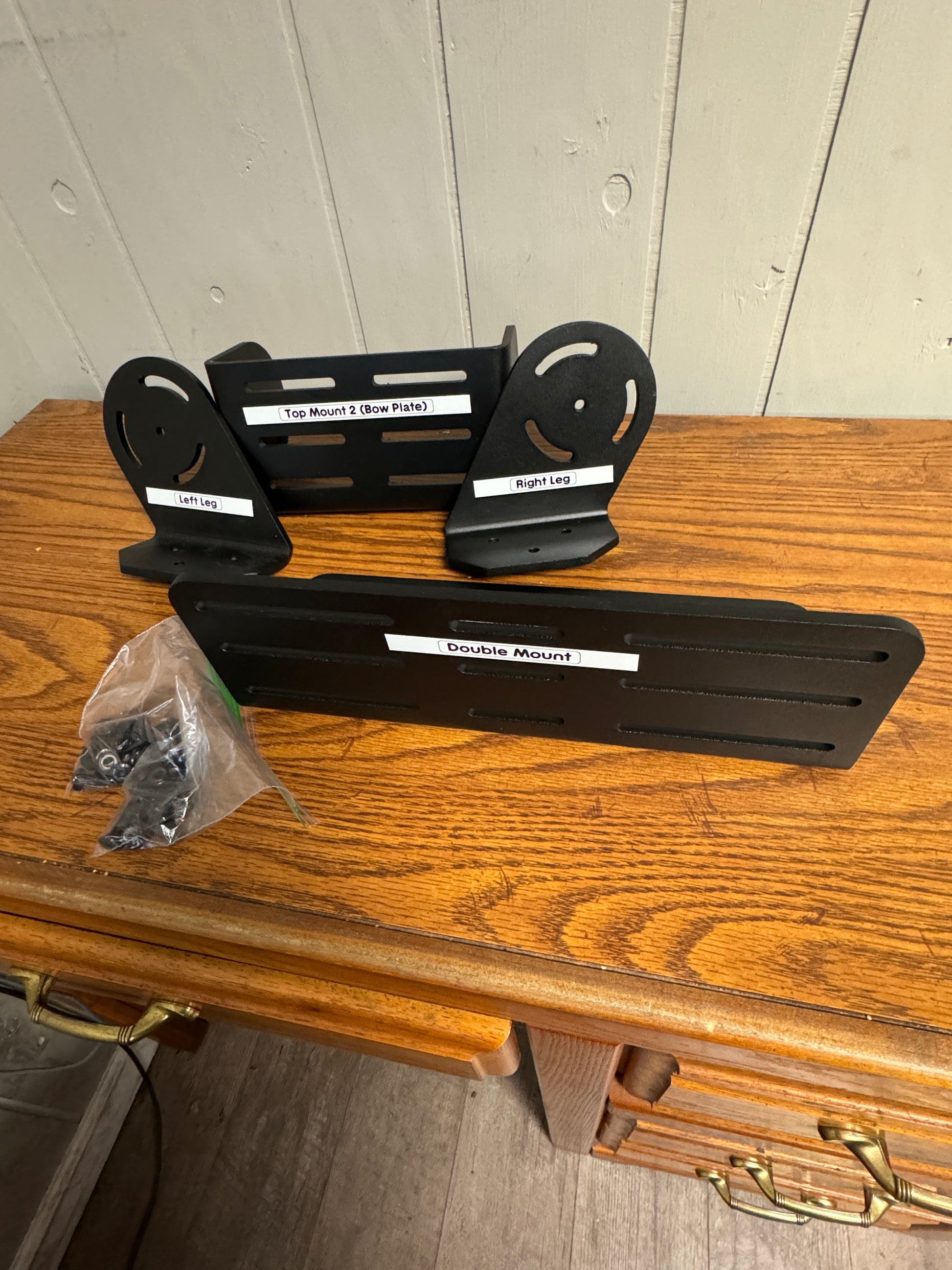

  • Bow Plate Double includes right leg, left leg, bow plate mount, double mount and assembly hardware

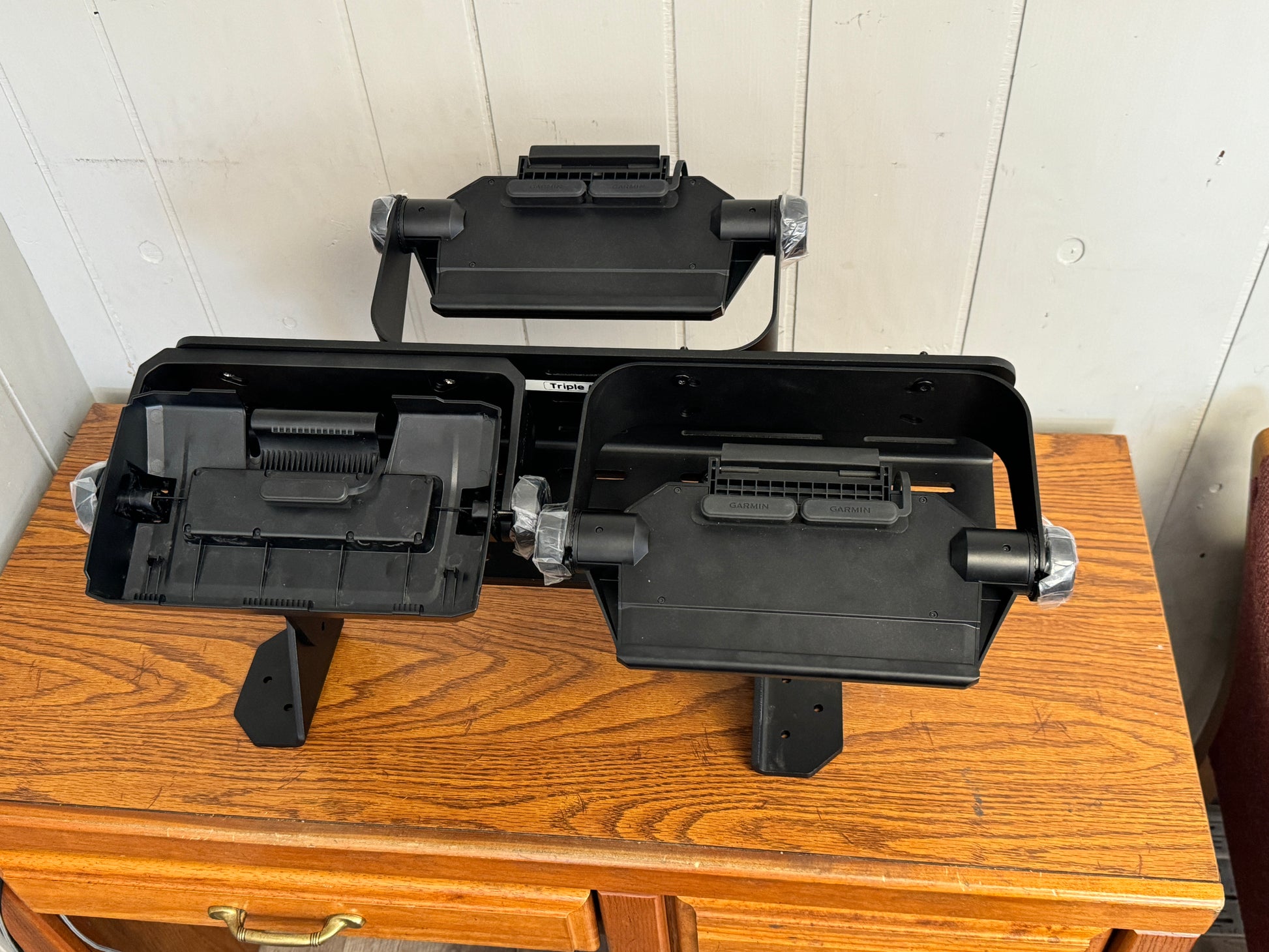

  • Bow Plate Triple includes right leg, left leg, bow plate mount, triple mount and assembly hardware

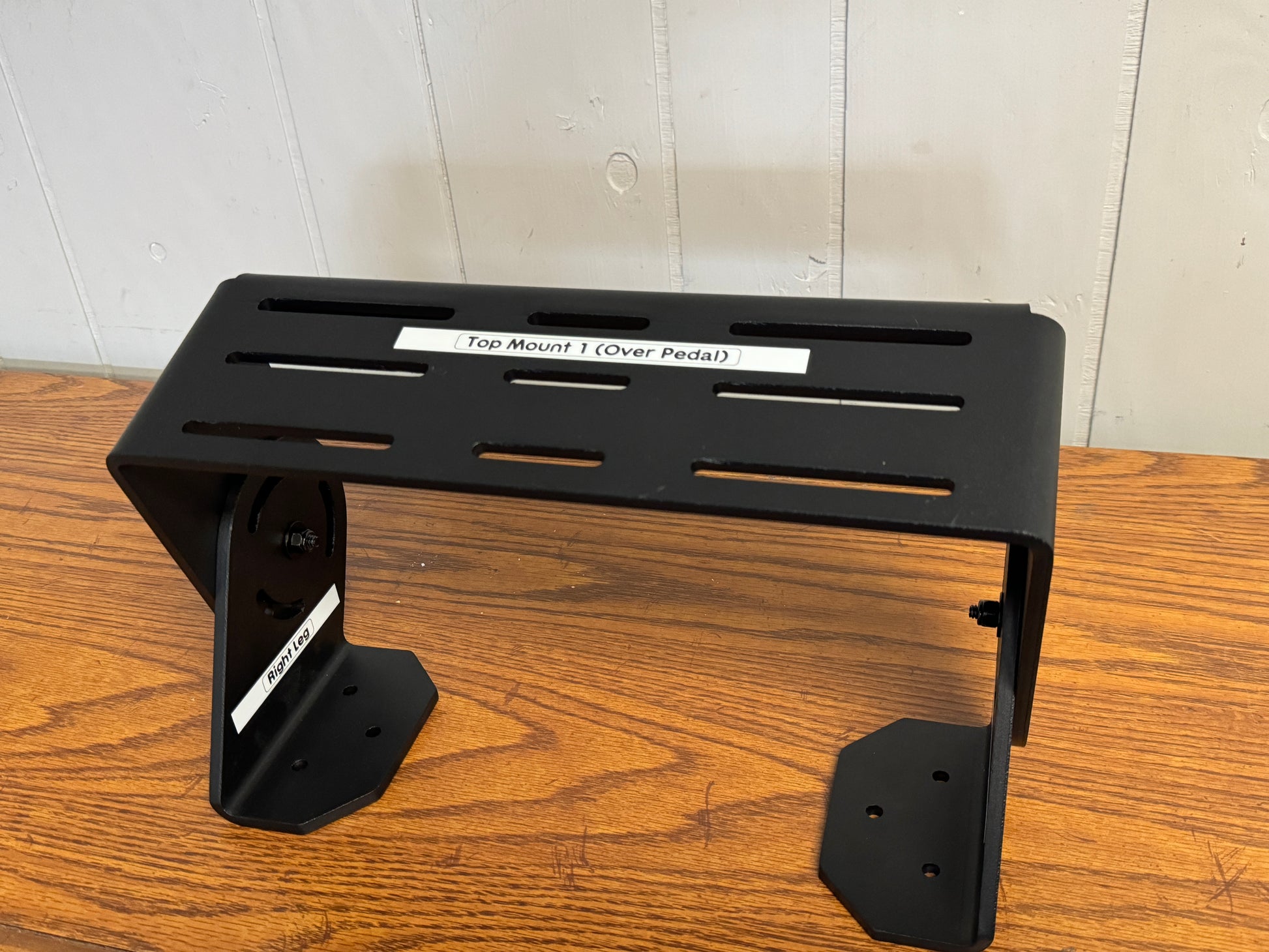

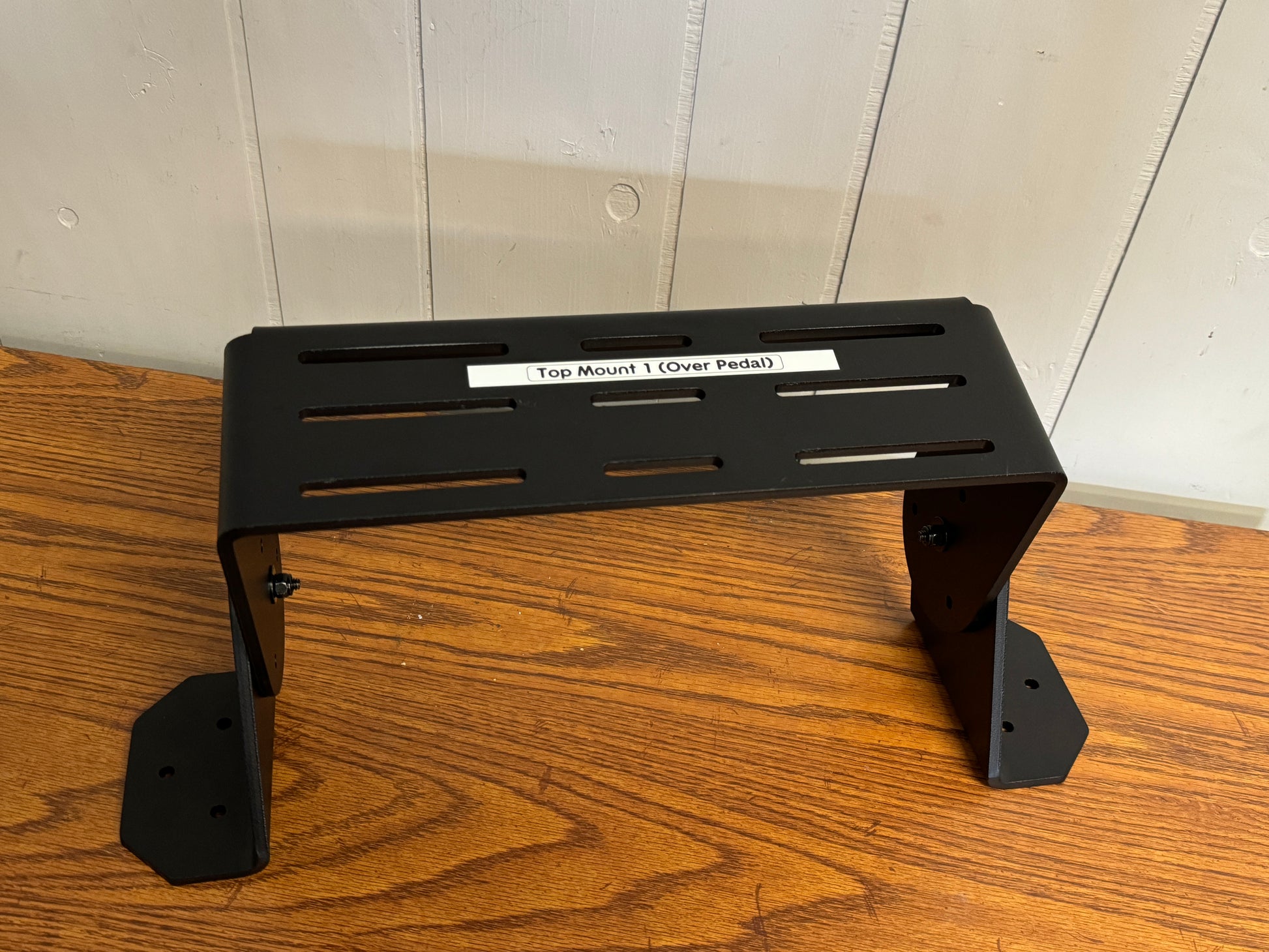

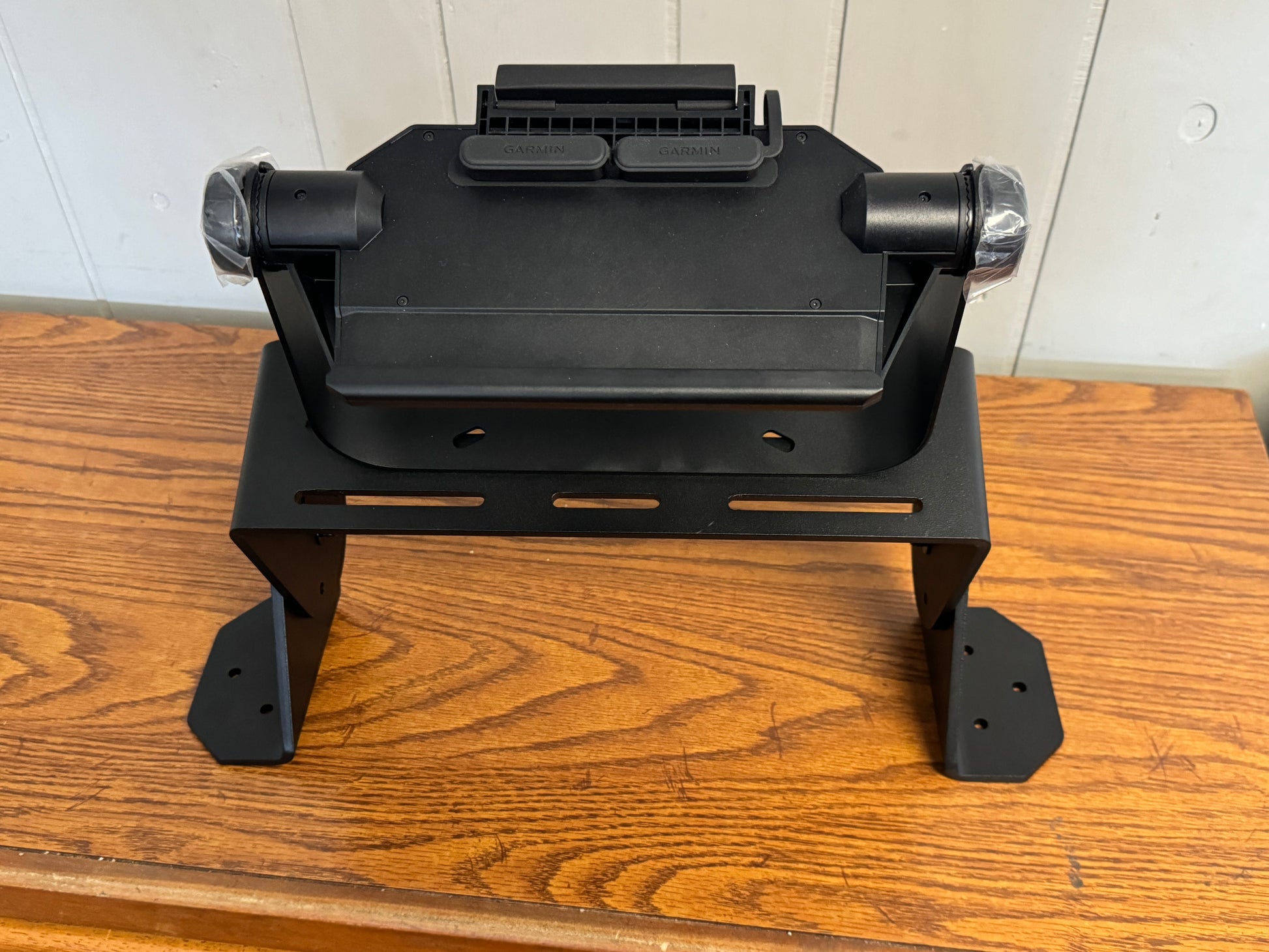

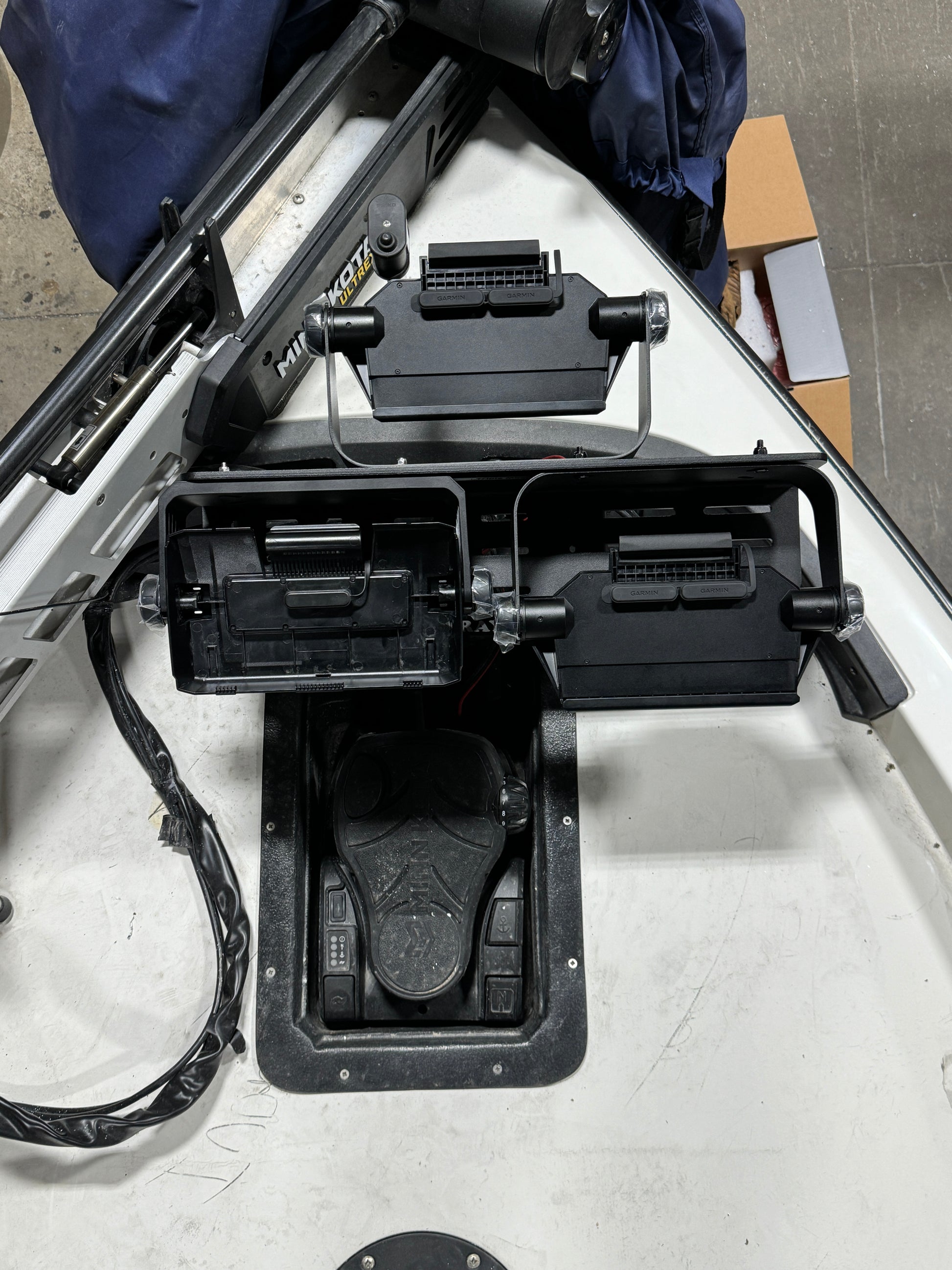

  • Over The Pedal Single includes right leg, left leg, over the pedal mount and assembly hardware

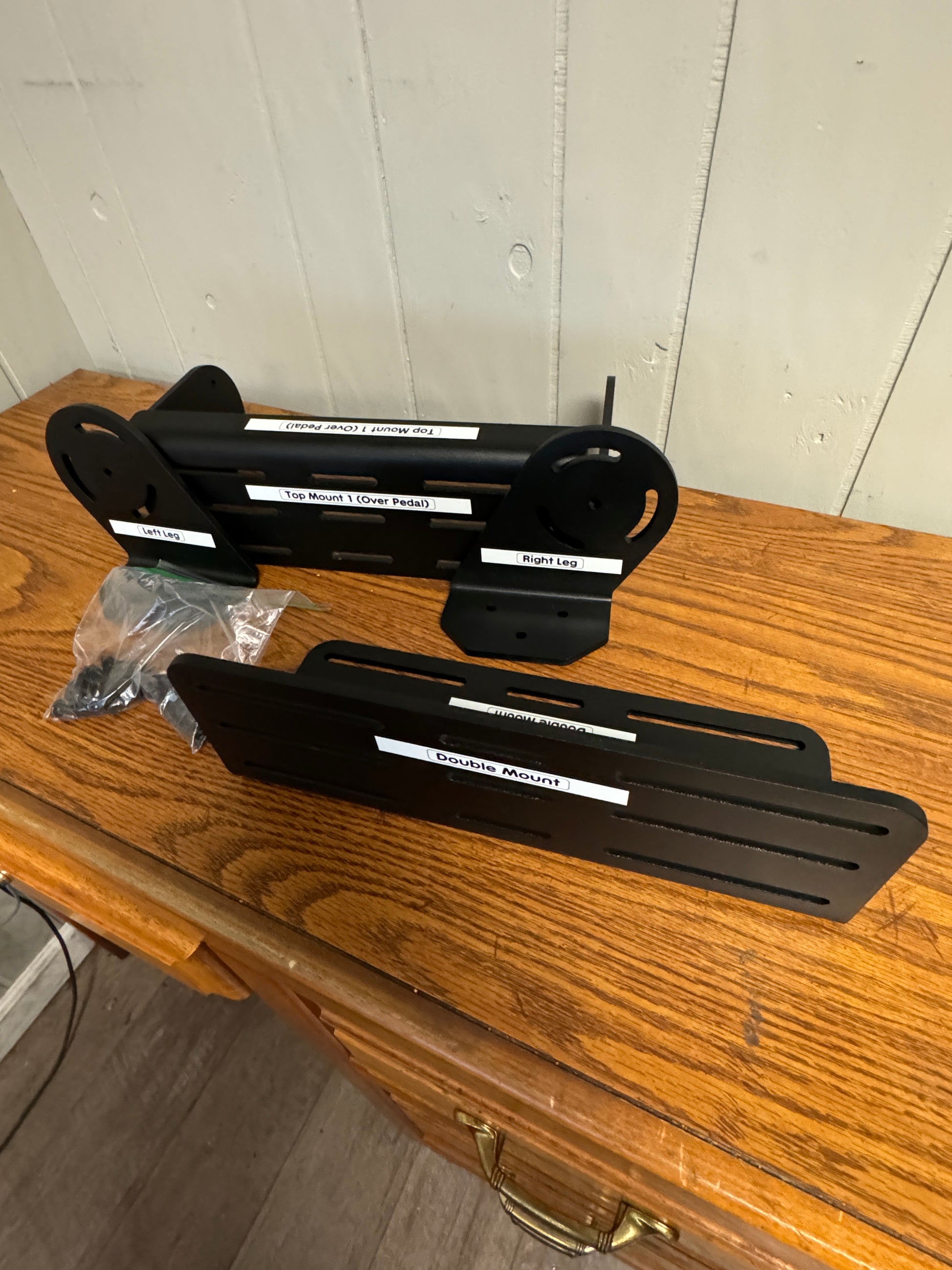

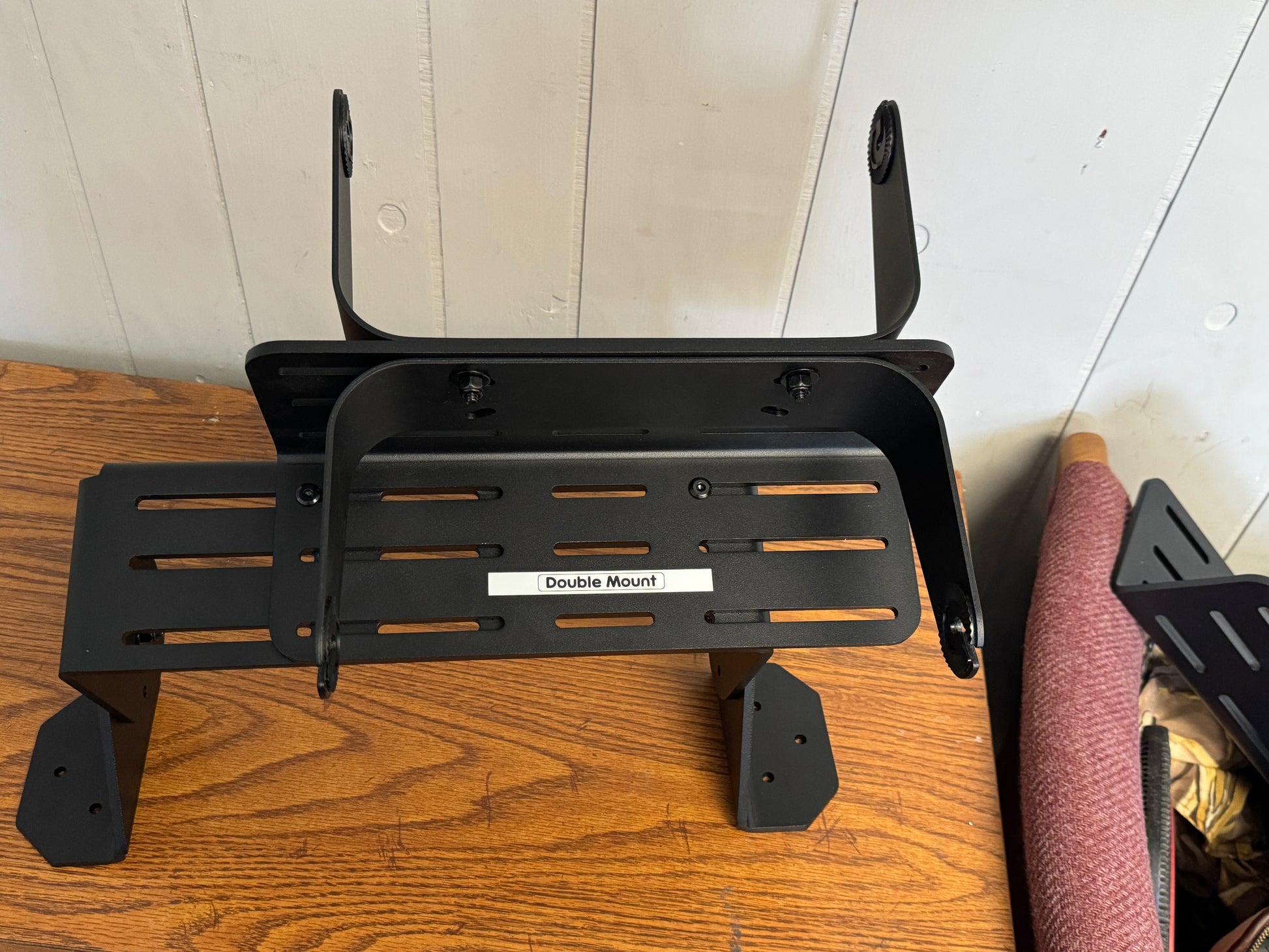

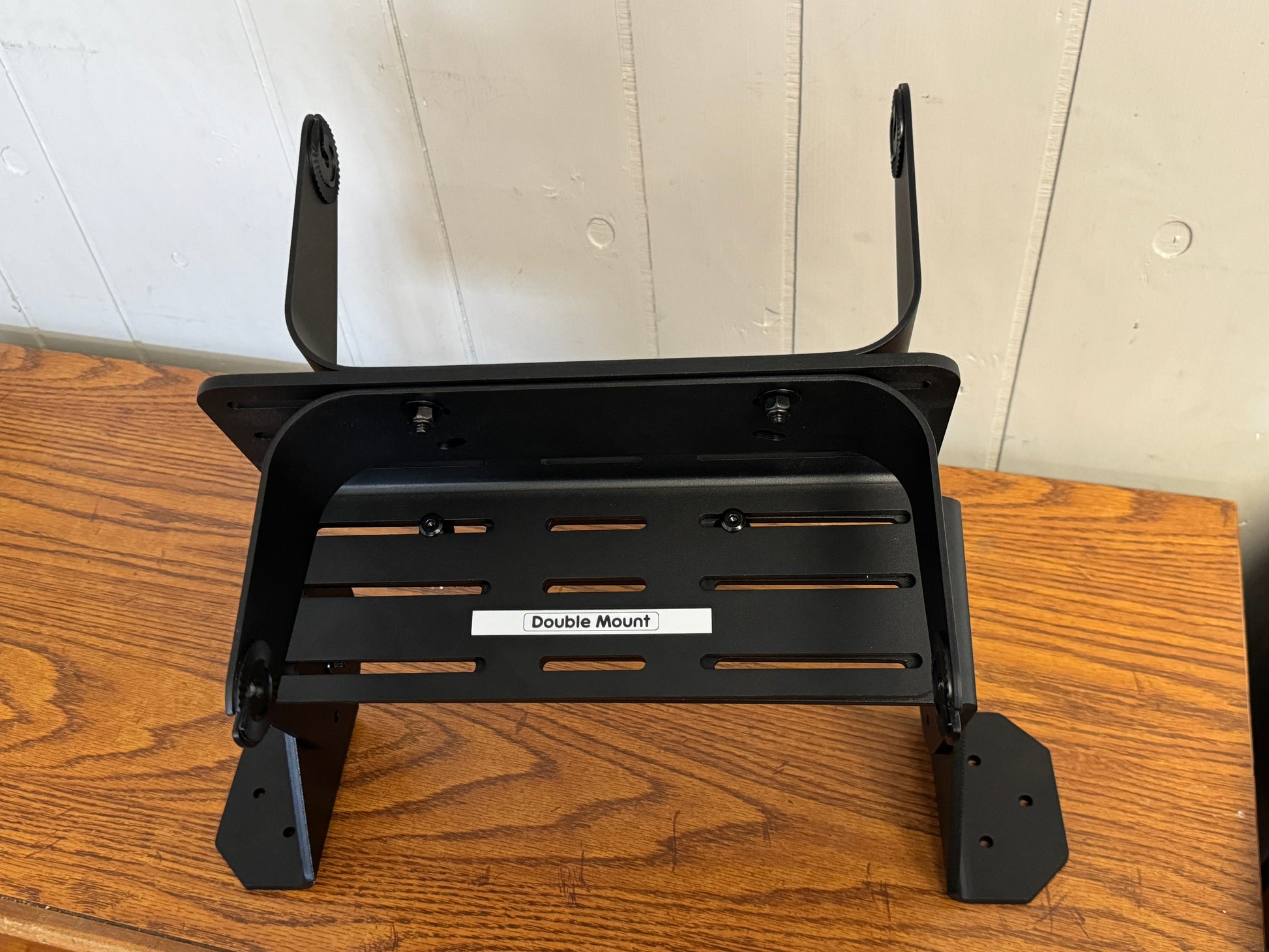

  • Over The Pedal Double includes right leg, left leg, over the pedal mount, double mount and assembly hardware

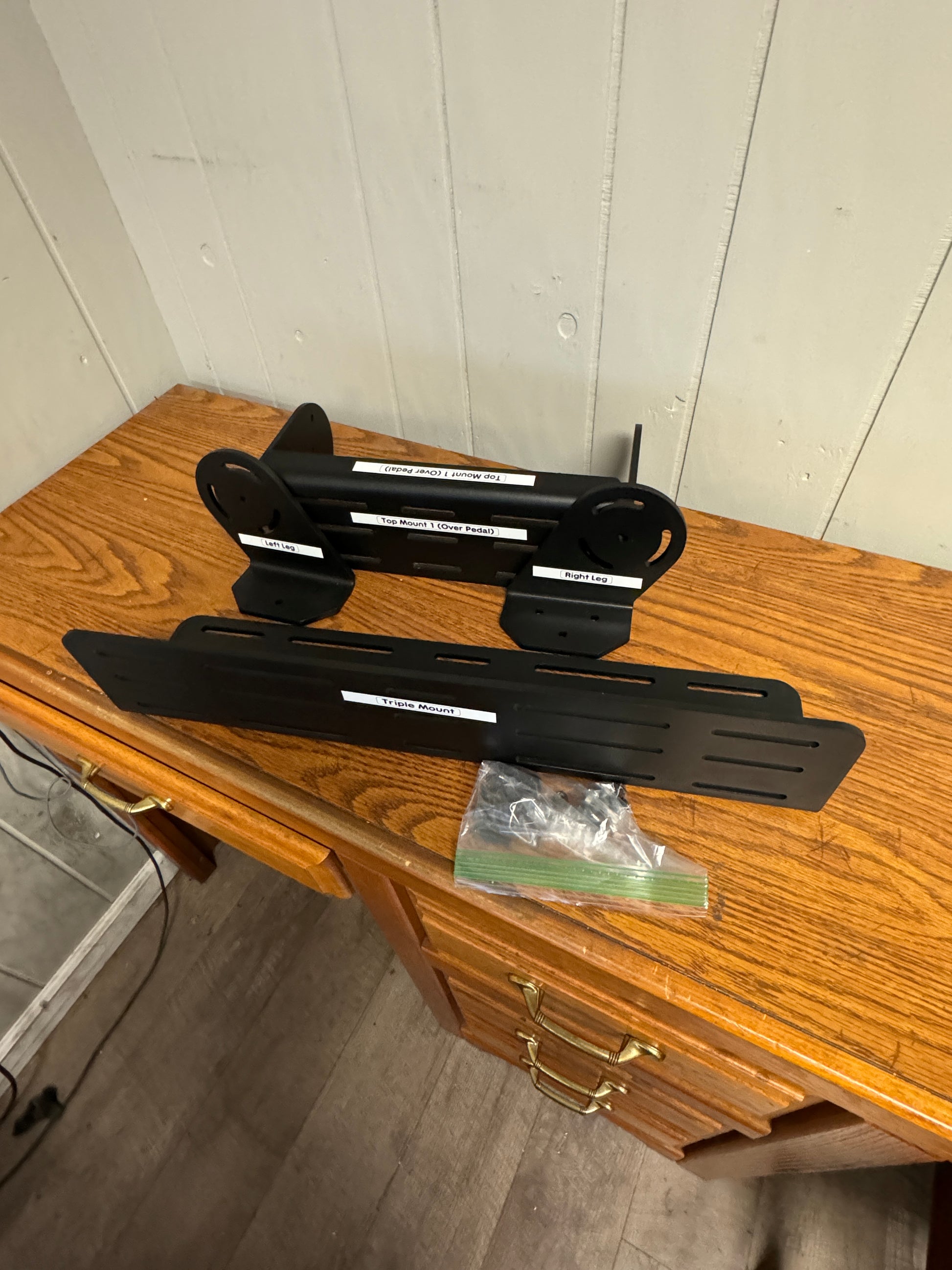

  • Over The Pedal Triple includes right leg, left leg, over the pedal mount, triple mount and assembly hardware



*FREE SHIPPING over $250 total spend* Made 100% in the USA by TBN Outdoors Midwest in Pekin, IL
